Load & Go VBX Series

Pricing Starting at:
$94,900

  • Run up to 4 different OP10/OP20 parts
  • Easily add new parts with no robot programming
  • No turnover station (or grippers) needed
  • Pivots for easy access to CNC machine
  • Automated CNC machine tending

Download Spec Sheet

Watch the Load & Go VBX in action!

MultiGrip™

A revolutionary way to pick up and turn over parts

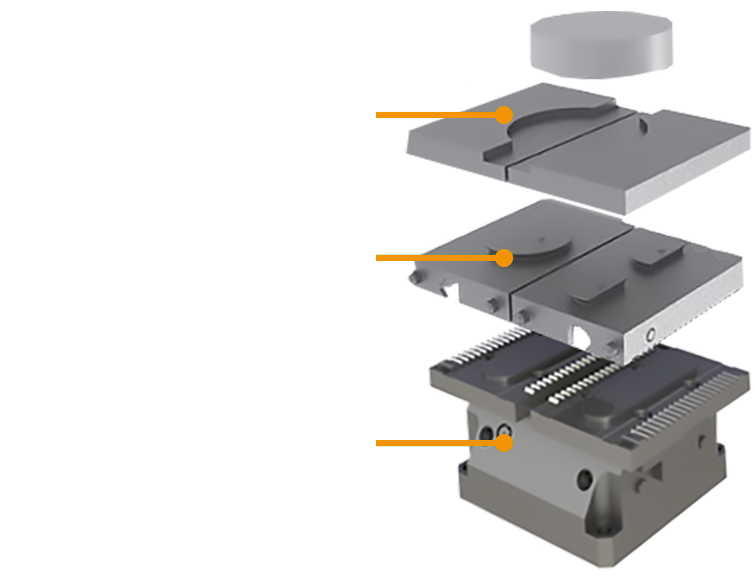

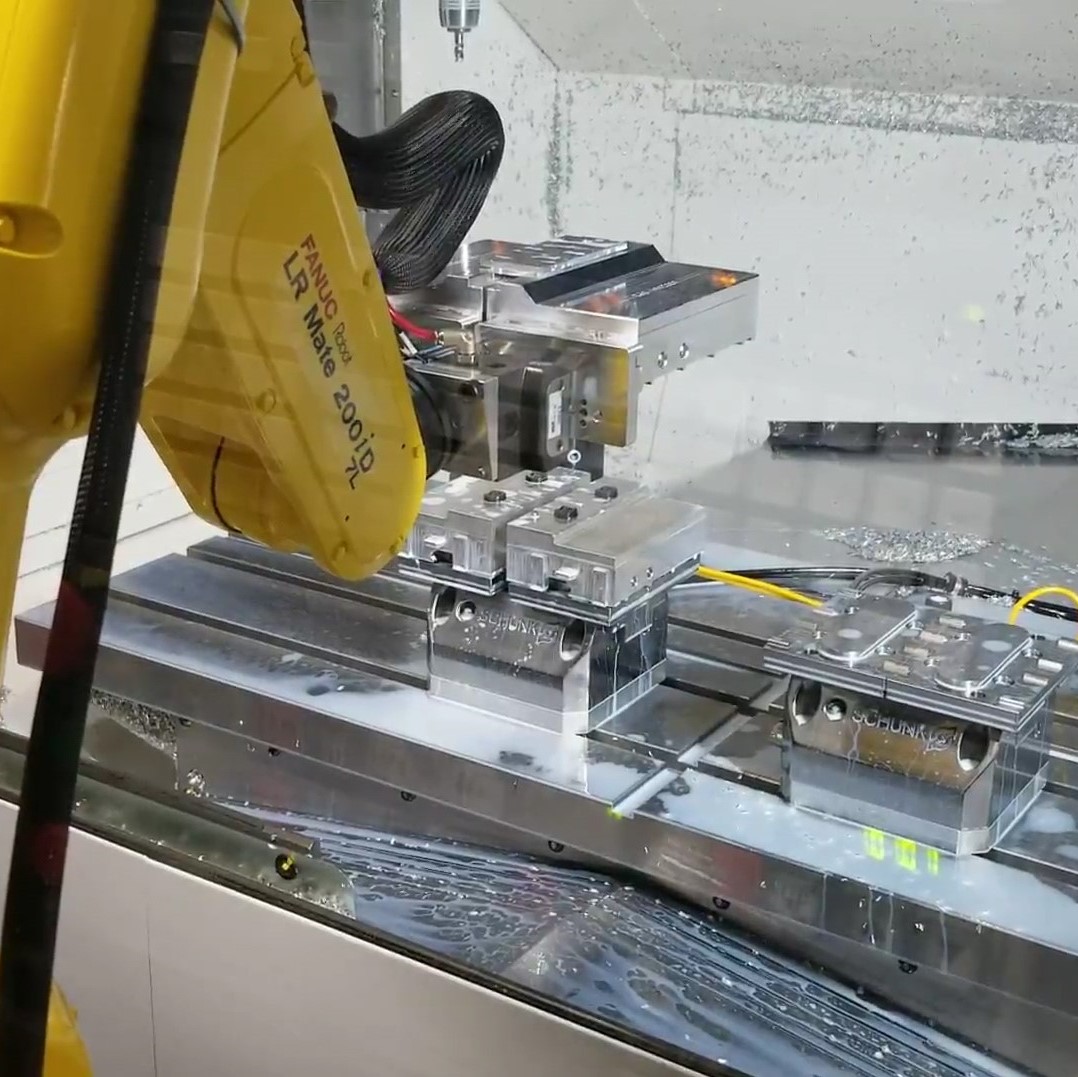

No need for gripper changes, because the robot uses the MultiGrip™ jaws to pick up parts. The MultiGrip™ jaws easily connect to the Schunk vise. Just change the top jaws like you would in a hand-loaded process.

Watch Video

multigrip-labeled-white-text

Pricing Information

VBX-160

$94,900

Payload: 6.6 lbs
(top jaws + part)

(1) Schunk KSP-LH-PLUS-160 vise compatible with MultiGrip™
(1) MultiGrip™ base jaw
(1) 1.0" Top jaw

VBX-260

$99,900

Payload: 21.6 lbs
(top jaws + part)

(1) Schunk KSP-LH-PLUS-160 vise compatible with MultiGrip™
(1) MultiGrip™ base jaw
(1) 1.0" Top jaw

MultiGrip™ Accessories

1.0" Top jaws:
$129 each

MultiGrip™ base jaws (7 additional max):
$499 each

Schunk KSP-LH-PLUS-160 vise compatible with MultiGrip™:
$7,995 each

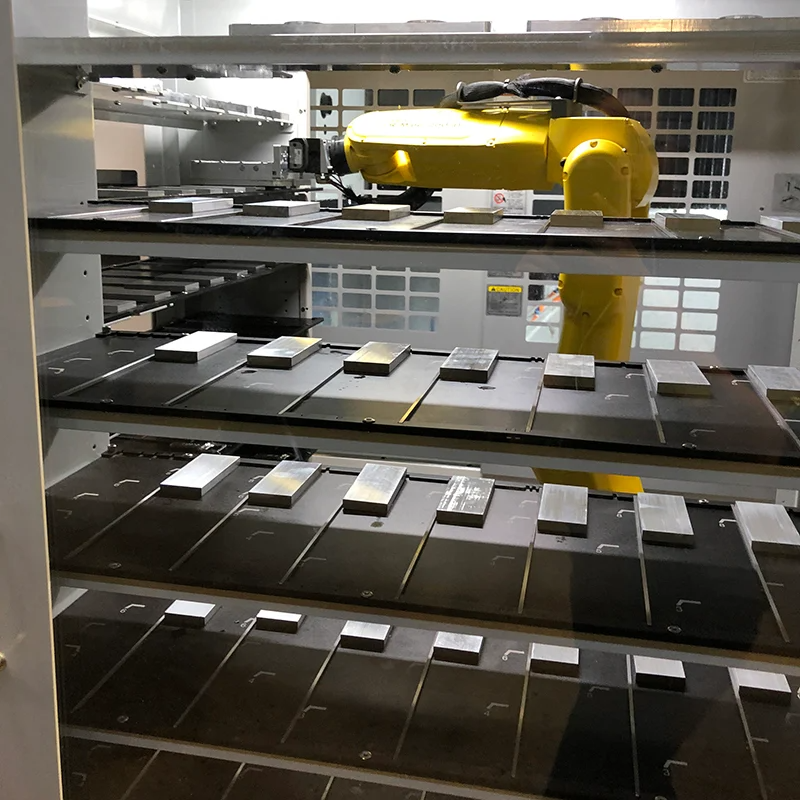

Universal Part Locators

Optimize part capacity based on part width by simply positioning the locators to allow for 3, 4, 5, 6, and 8 parts per shelf.

VBX-160 model

VBX Series Shelves

Part Capacity
< 3.8" in height
Max Part Width Max Part Depth
104 parts 2.5" 8"
81 parts 4.0" 8"
67 parts 5.5" 8"
53 parts 6.5" 8"
40 parts 8.5"* 8"

*Round part max part width 7.5"

Load & Go VBX Series Specifications

Part Dimension (w x d x h)
Up to 8.5" x 8.0" x 8.8"

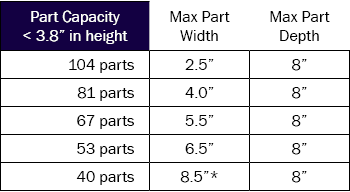

short-part-capacity-table-v2
tall-part-capacity-table
MultiGrip Vise Support
Up to 3 vises per CNC
Max Reach (from inside VBX-160)
44"
Power Requirements
230VAC/3A/60HZ/1PH
VBX Series Footprint
53" x 53" x 78" - Layout
Main. Compressed Air
90-120 PSI
Weight
1,500 lbs
VBX-160 Payload
6.6lb (top jaws + part)
VBX-260 Payload
21.6lb (top jaws + part)
Rinse bucket and drier for coolant
Live camera for monitoring
Corner pivot to allow access to CNC machine

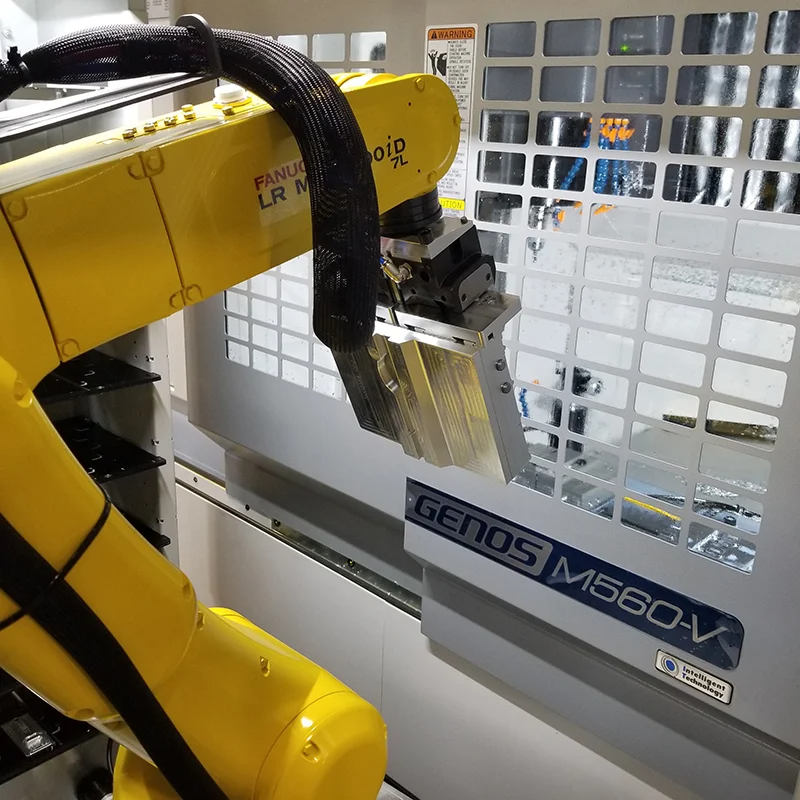

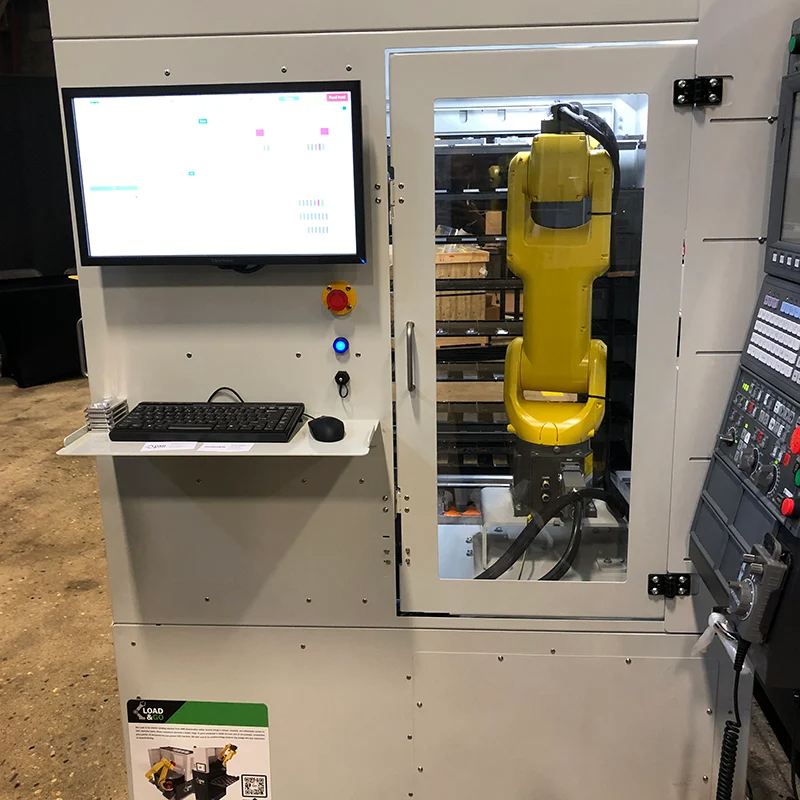

System equipped with a Fanuc robot
A VBX Series Load & Go includes (1) Schunk KSP-LH-PLUS-160 vise and a set of top and base MultiGrip™ jaws.

* Round part max part width 7.5"

vbx-manuals-img

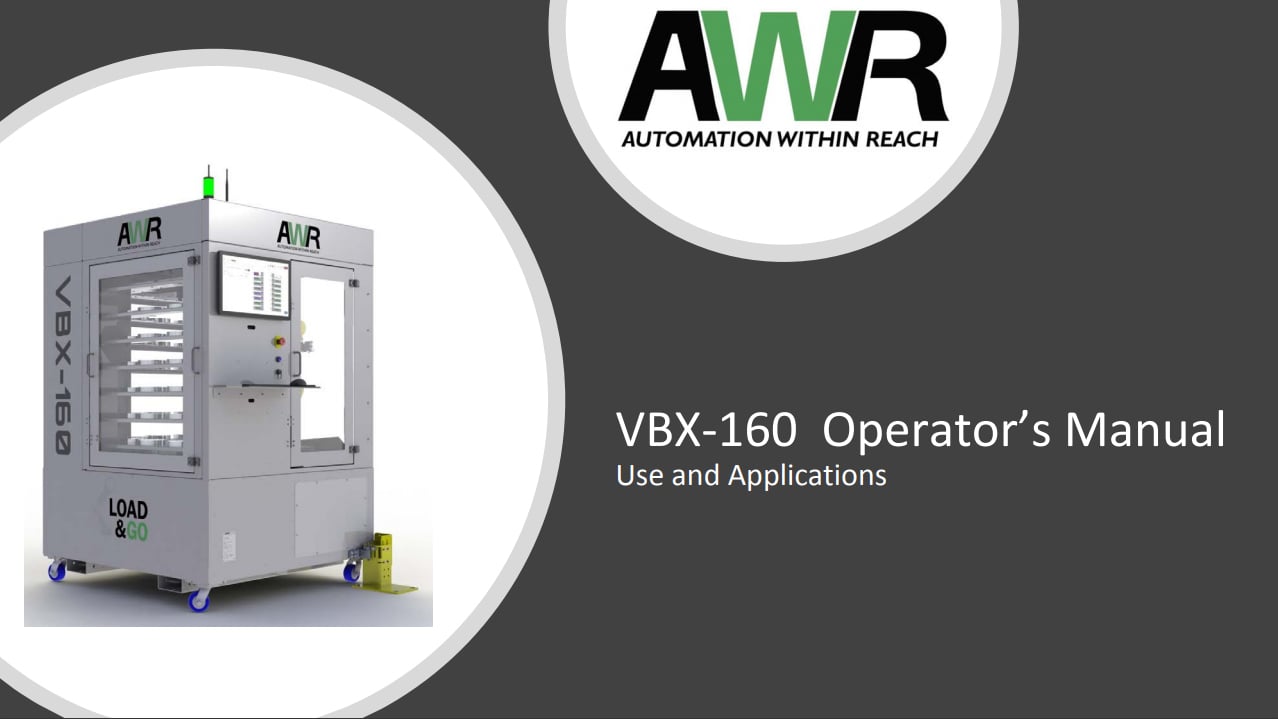

Looking for Manuals and Documentation?

Head to our docs page for manuals and other resources to make operating the VBX-160 as simple as possible.

Check it out

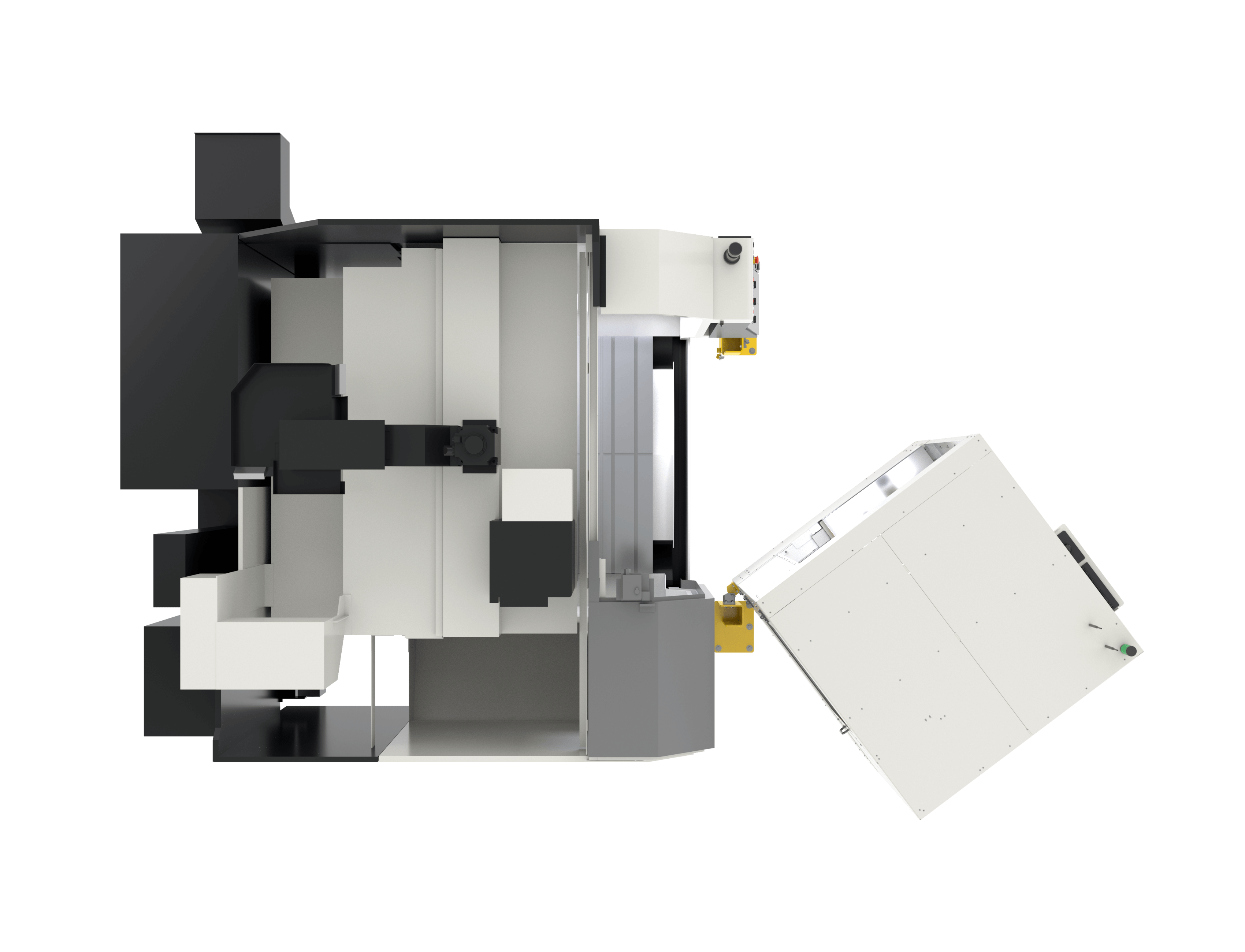

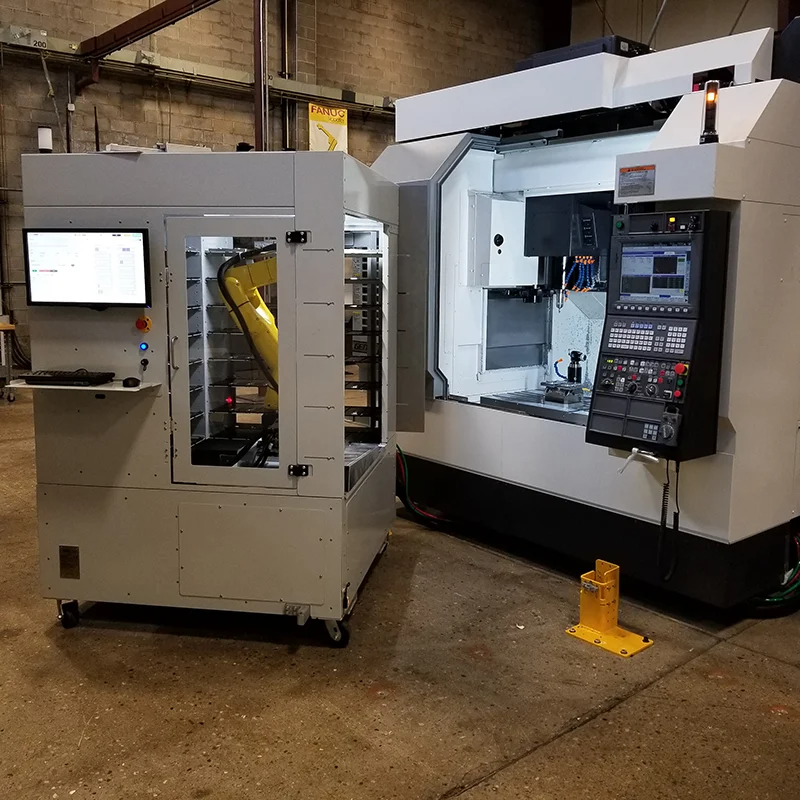

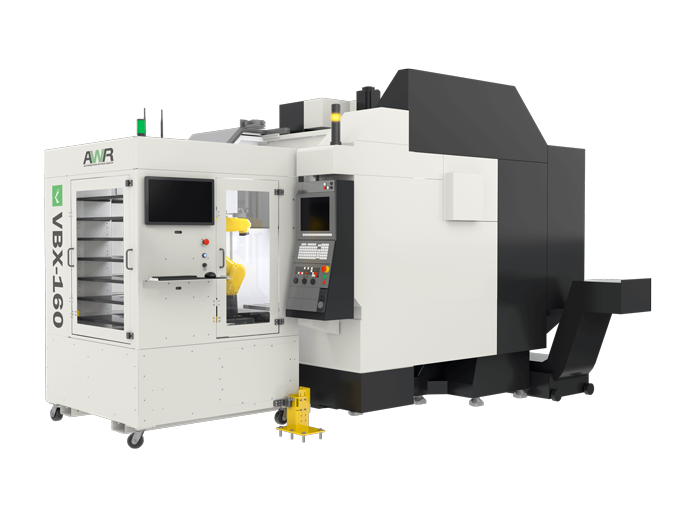

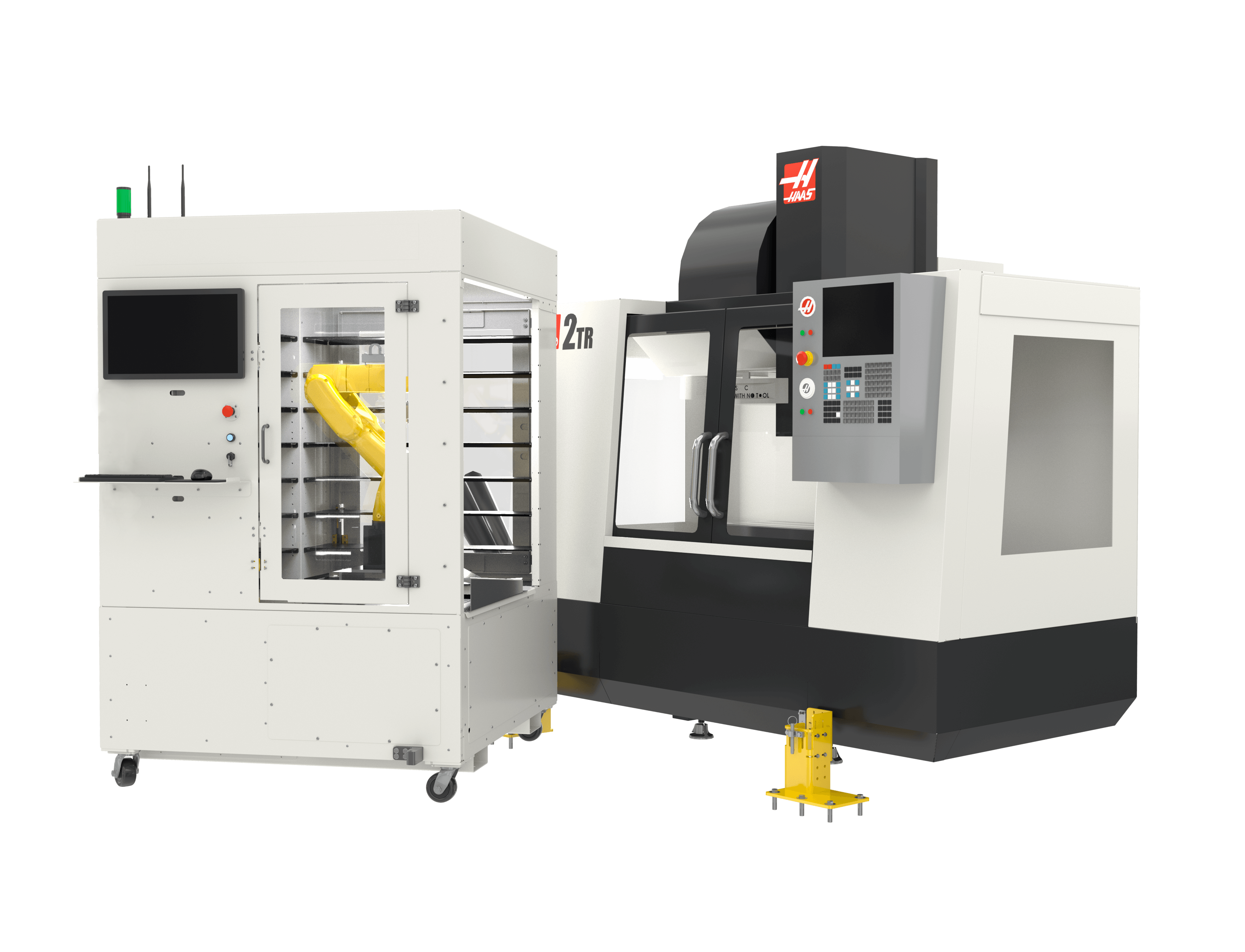

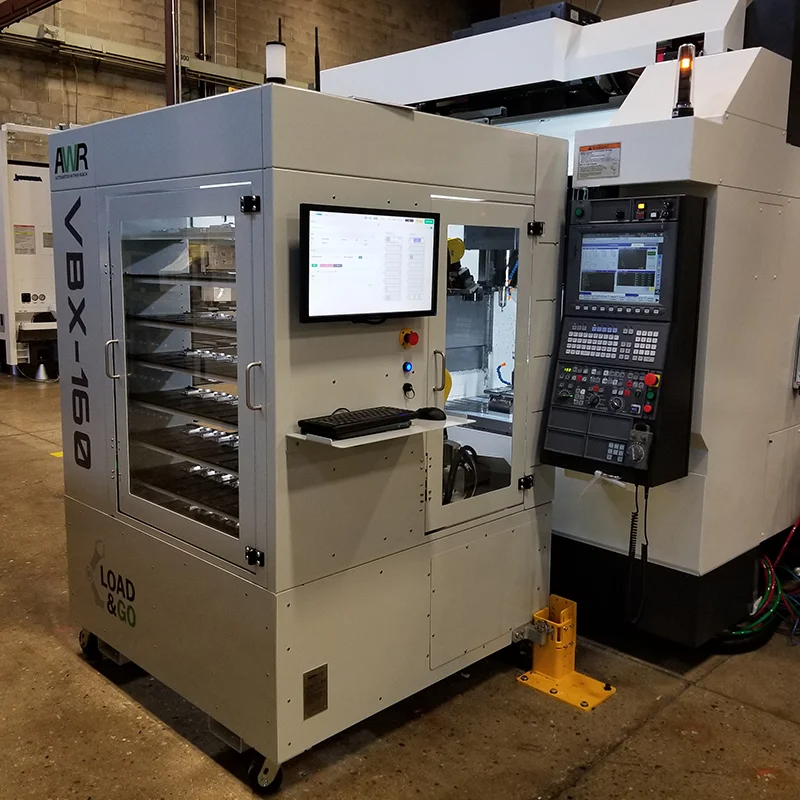

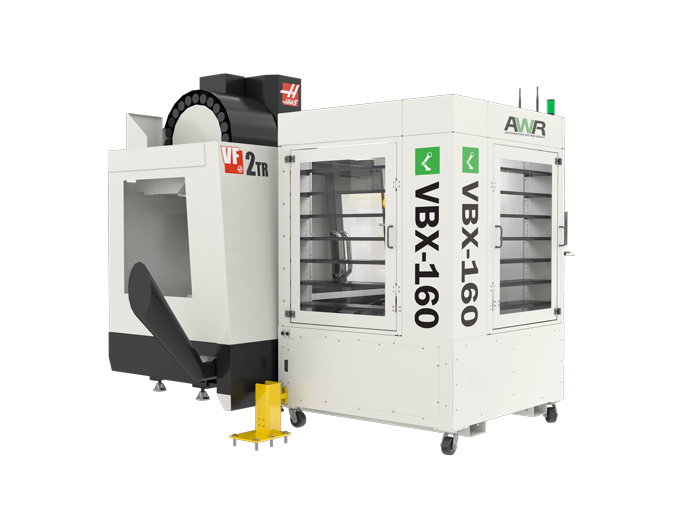

Load & Go VBX-160 on an Okuma Load & Go VBX-160 pivots away from the machine for easy access Load & Go VBX-160 on a Haas Load & Go VBX-160 on a Haas, open for machine access
