RC SERIES

Pricing Starting at:
$94,900

  • Easy to use without experience
  • No robot programming
  • Flexible for different part sizes
  • Compact CNC automation
  • Massively increases machine utilization

Download Spec Sheet

Watch the Load & Go Rotary Cell in action!

AWR Rotary Cell Robot Options

Each RC unit comes standard with 4 templates of the following sizes: 2", 3", 4", and 5".

RC-1

$94,900

Maximum Part Weight 9lb

RC-2

$104,900

Maximum Part Weight 18lb

RC-3

$120,900

Maximum Part Weight 32lb

Note: Part geometry, inertia, and loading requirements may further constrain capacities listed.

Robot Door Open Kit

The AWR RC series can circumvent the need for an automated Servo door by opening the CNC machine's door with the robot arm.

$2,000

Requirements:

  • Single-door CNC machine
  • Compatible robot reach with your CNC lathe

AWR RC Series Specifications

OD Diameter Range
0.5" - 5.0"
Custom templates available for up to 8.0" OD parts
ID Diameter Range
1.4" - 4.0"
Custom templates available for up to 8.0" OD parts
Part Length Range
0.75" - 11.0"
-
Part geometry, inertia, and loading requirements may further constrain capacities listed.
2" Template
166 Total Parts*
*Parts over 5 inches in height reduce the total parts by four.
3" Template
76 Total Parts*
*Parts over 5 inches in height reduce total parts by one.
4" Template
42 Total Parts
5" Template
28 Total Parts
Custom templates available for up to 8.0" OD parts
Part geometry/mass may further constrain capacities listed
Power Requirements
240VAC / 20A / 60HZ / 3PH
Touchscreen control
Main. Compressed Air
80 PSI
Floor Space (L x W)
11ft x 7.5ft
Overall height with robot
80"
Area scanner for safety and accessibility
Weight
<2,000 lbs
System equipped with a Fanuc robot

* Additional features to handle larger parts or utilize a turnover station are available

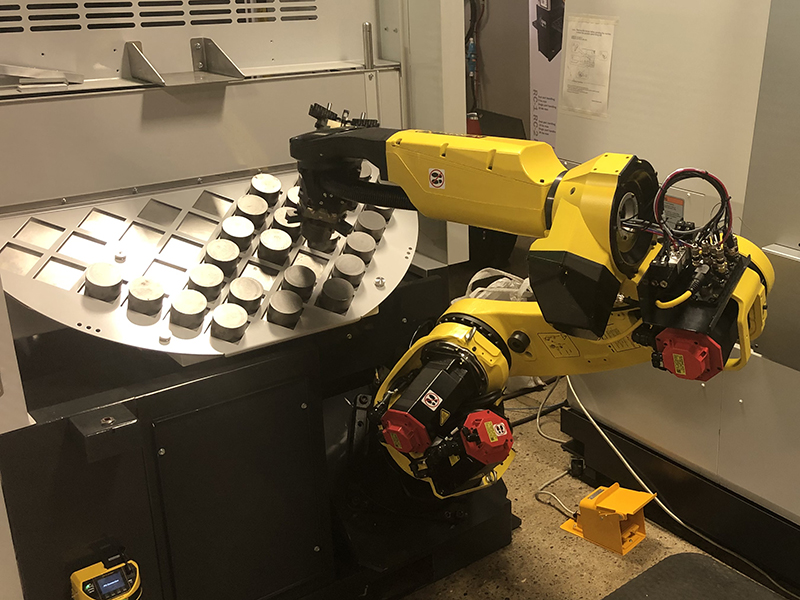

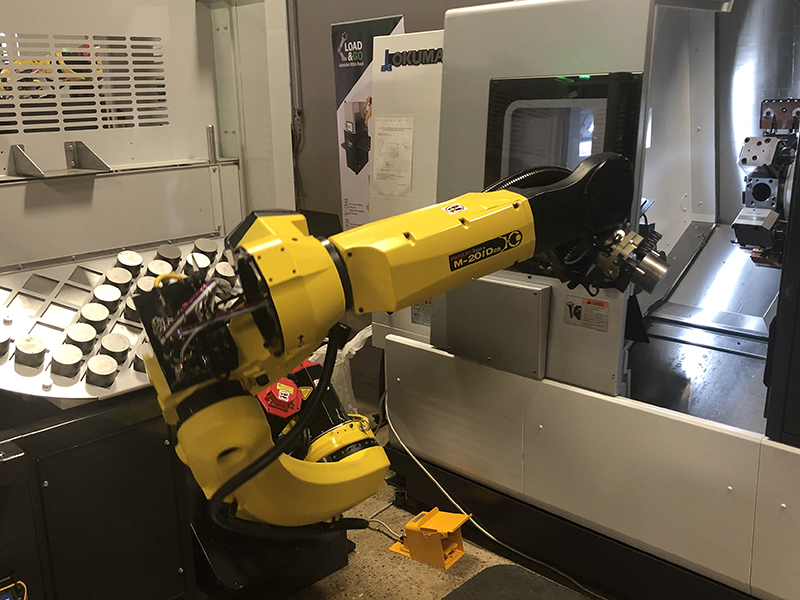

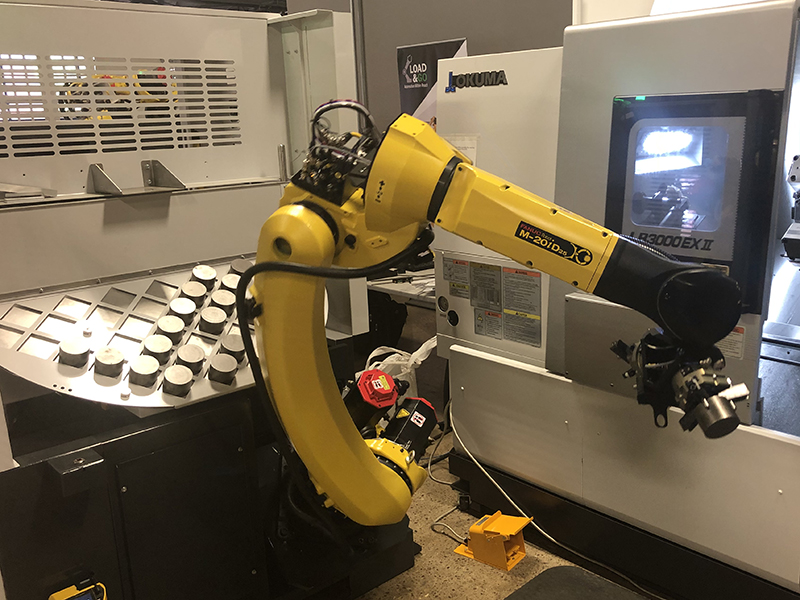

The Load & Go RC-1 on an Okuma The Load & Go RC-1 on a Haas The Load & Go RC-1 on an Okuma The Load & Go RC-1 on a Haas
