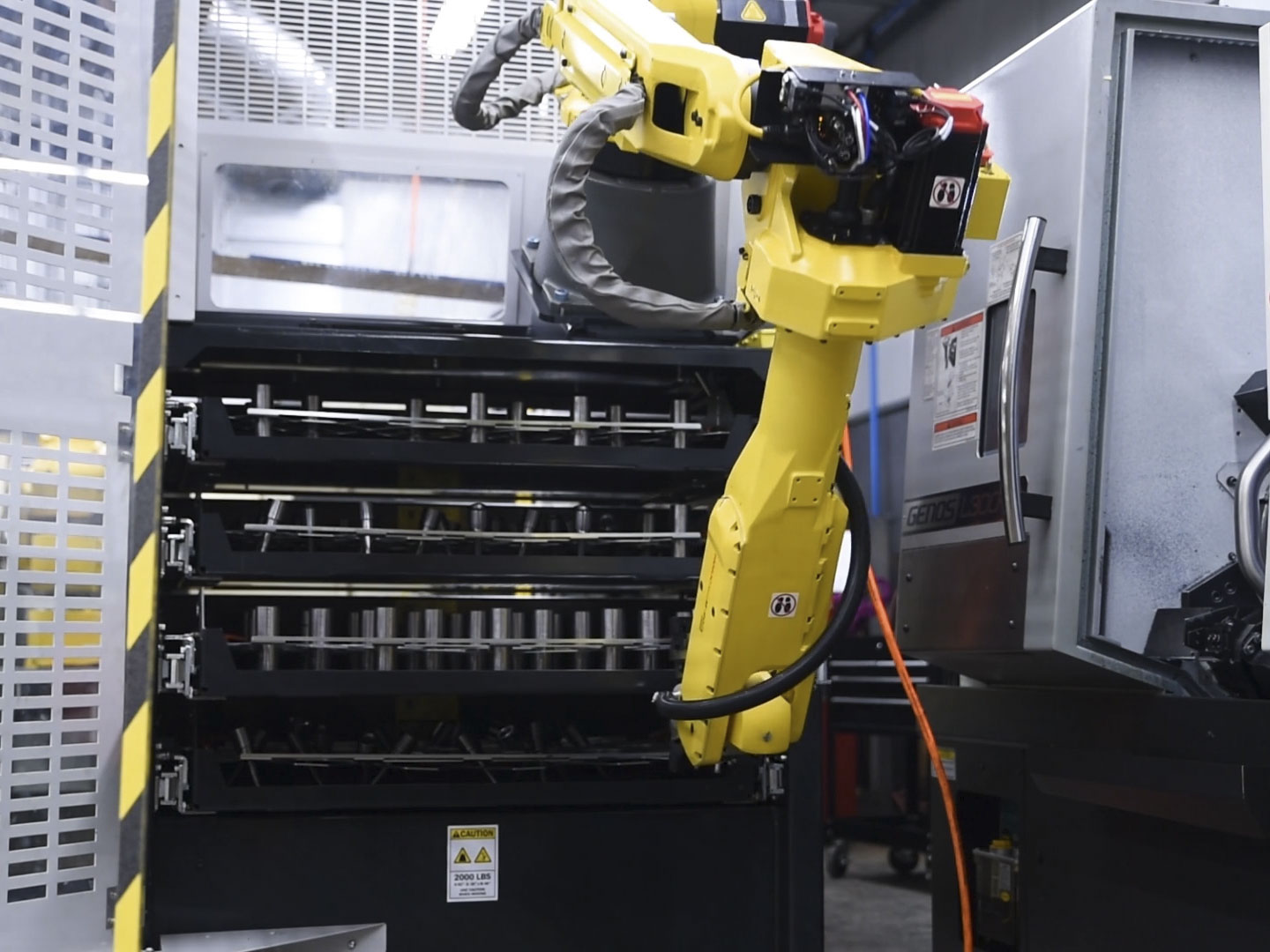

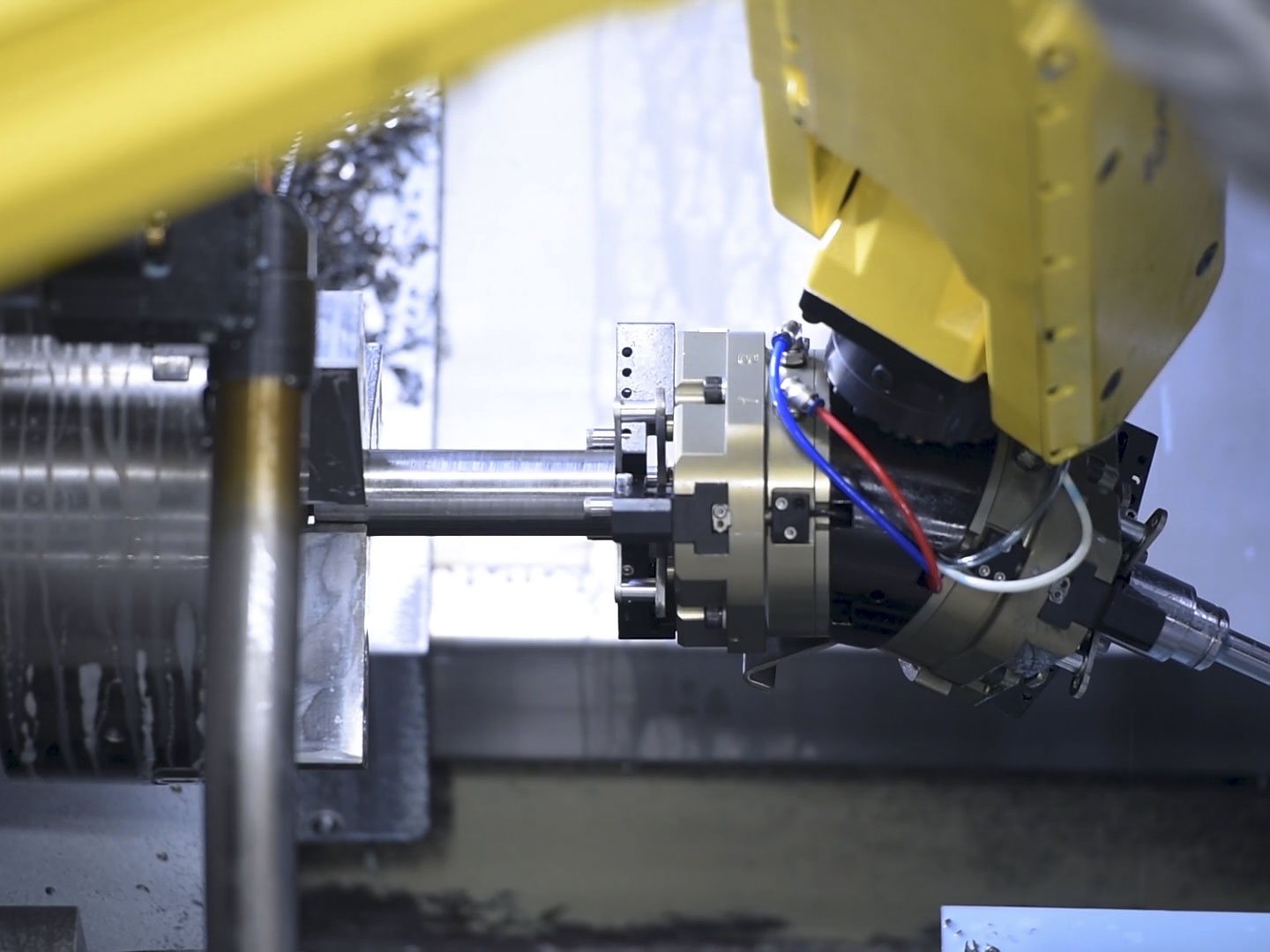

Load & Go DC Series

Pricing Starting at:
$114,900

  • Easy to use without experience
  • No robot programming
  • Flexible for different part sizes
  • Massively increases machine utilization

Download Spec Sheet

Watch videos of the Load & Go Drawer Cell in action!

Which DC Unit Best Suits Your Needs?

DC-1

$114,900

Dual part loading - 9lb
Single part loading - 18lb
Drawer payload - 200lb

DC-2

$124,900

Dual part loading - 18lb
Single part loading - 36lb
Drawer payload - 300lb

DC-3

$129,900

Dual part loading - 32lb
Single part loading - 64lb
Drawer payload - 400lb

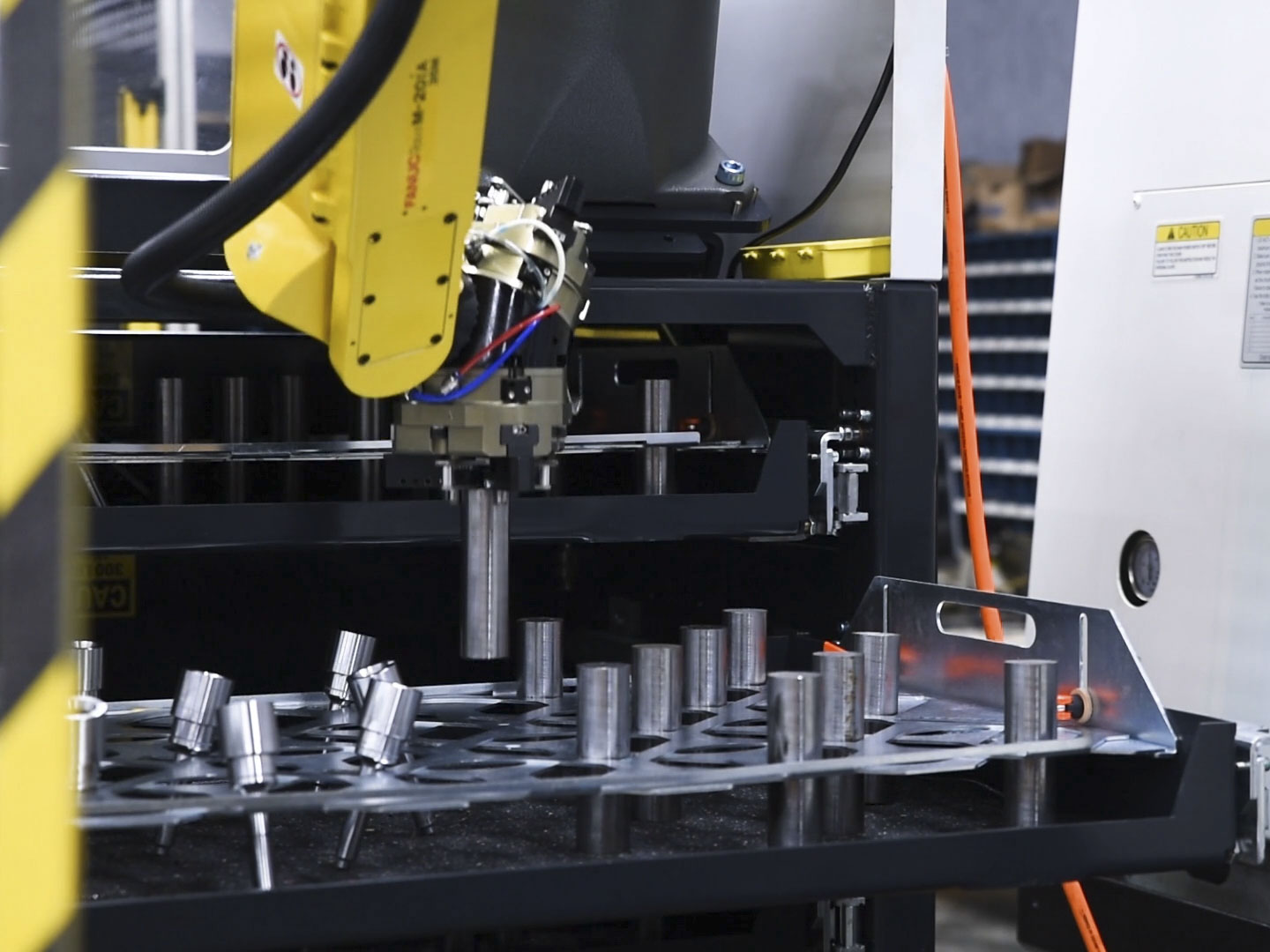

Drawer Templates

Standard, Small, or Large

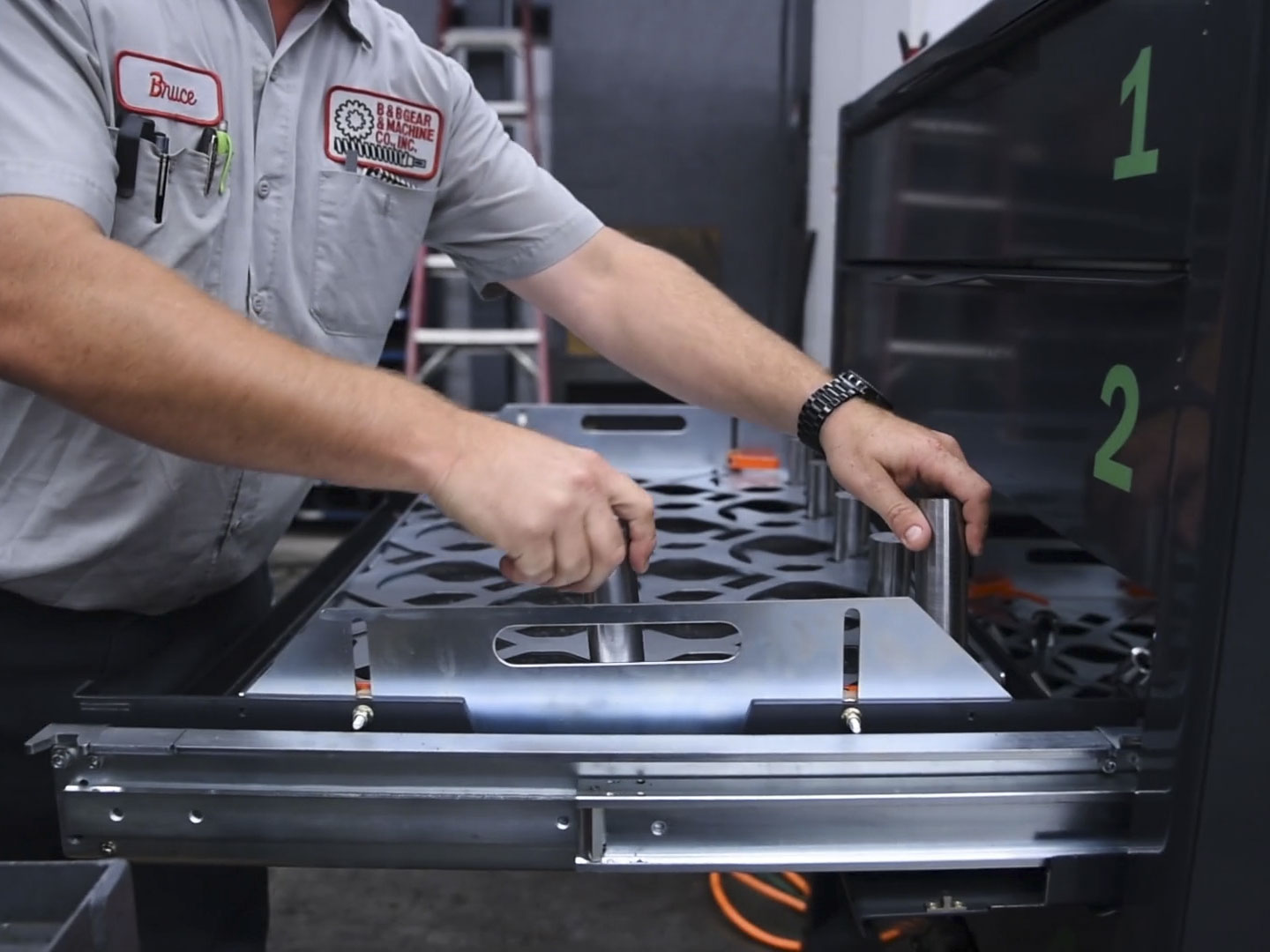

Easily center your parts in any of three drawer templates designed to accommodate smaller or larger parts as your operation demands. The templates can be interchanged easily to maximize the flexibility of your machine.

Swipe on the images to view each option.

av18006-400-04web

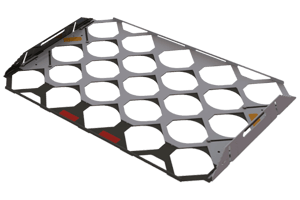

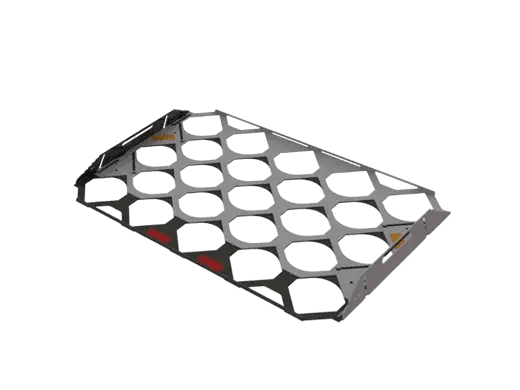

Standard

Included

Part OD Range: 0.50" - 5.00"

Max 92 Parts

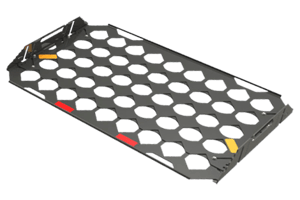

av18006-420-02web

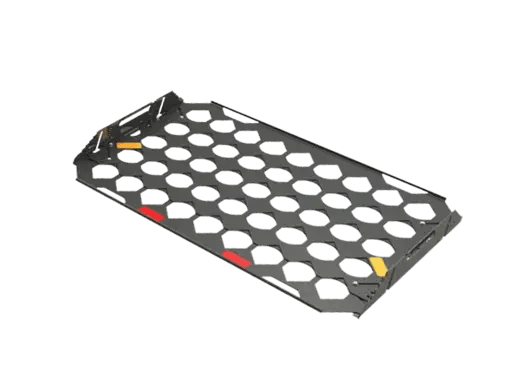

Small

$4,900

Part OD Range: 0.50" - 3.00"

Max 180 Parts

av18006-481-02web

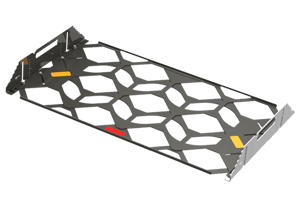

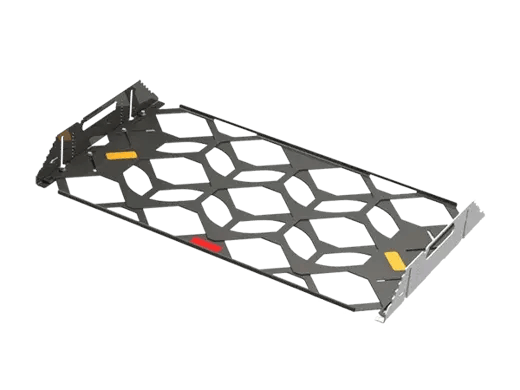

Large

$4,900

Part OD Range: 5.00" - 8.00"

Max 44 Parts

Robot Door Open Kit

The Load & Go DC series can circumvent the need for an automated Servo door by opening the CNC machine's door with the robot arm.

$2,000

Requirements:

  • Single-door CNC machine
  • Compatible robot reach with your CNC lathe

Load & Go DC Series Specifications

OD Diameter Range
0.5" - 5.0"
*up to 8.0" OD available
ID Diameter Range
1.4" - 4.0"
*up to 8.0" ID available
Part Length Range
0.75" - 7.0"
-
Total Parts
92 parts
* up to 180 parts available with optional template
Total Parts
92 parts
Standard (4 drawers contain 23 parts each)
Total Parts
180 parts *
Up to 180 parts available with optional template
Power Requirements
240VAC / 20A / 60HZ / 3PH

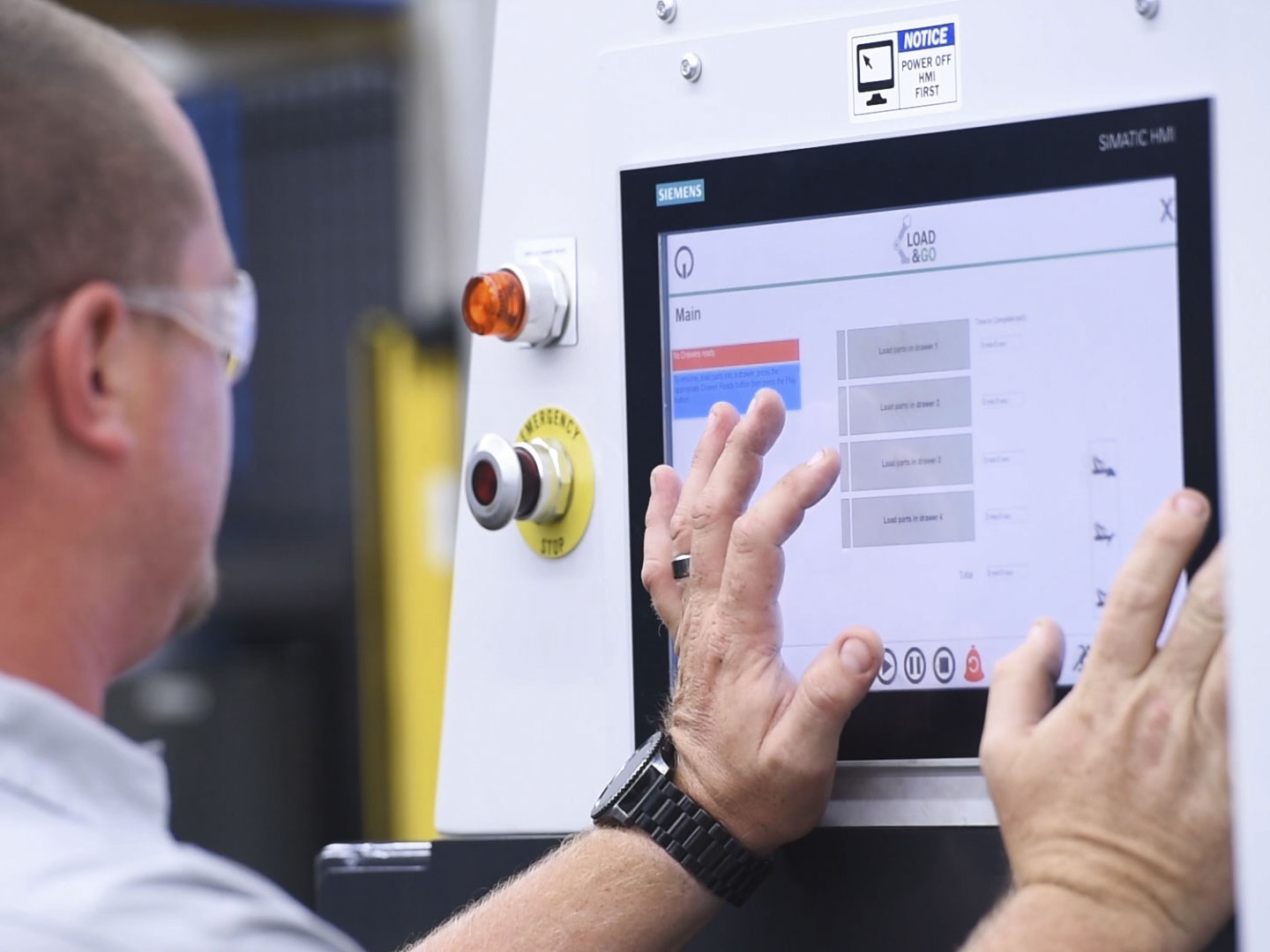

Touchscreen Control
Main. Compressed Air
80 PSI
No robot programming required
Floor Space (L x W)
12ft x 6ft - Layouts
Less than 5 minutes to set up a new part
Overall height with robot
120"
Area scanner for safety and accessibility
Weight
<2,350 lbs
Video instructions are easy to understand in any language
System equipped with a Fanuc robot
Standard Template
Comes standard with Drawer Cell unit
Part Range
0.50" - 5.00" OD
Overall Height Range
0.75" - 7.00"
Part Quantity
92 parts/system (23 parts/drawer )

Small Template

Part Range
0.50" - 3.00" OD
Overall Height Range
0.75" - 7.00"
Part Quantity
180 parts/system (45 parts/drawer)

Large Template

Part Range
5.00" - 8.00" OD
Overall Height Range
0.75" - 7.00"
Part Quantity
44 parts/system (11 parts/drawer)

For DC-1
Comes standard with Drawer Cell unit
Part OD Range
0.25" - 8.00"
Part ID Range
1.00" - 6.00"
Adjustment Increments
0.375"
Easy 1-bold adjustment
For DC-2 and DC-3
Upgrade combined with Large Template package
Part OD Range
0.375" - 8.00"
Part ID Range
1.00" - 6.00"
Adjustment Increments
0.500"
Easy 1-bold adjustment

* Additional features are available for square parts, larger parts, utilizing a turnover station and more.

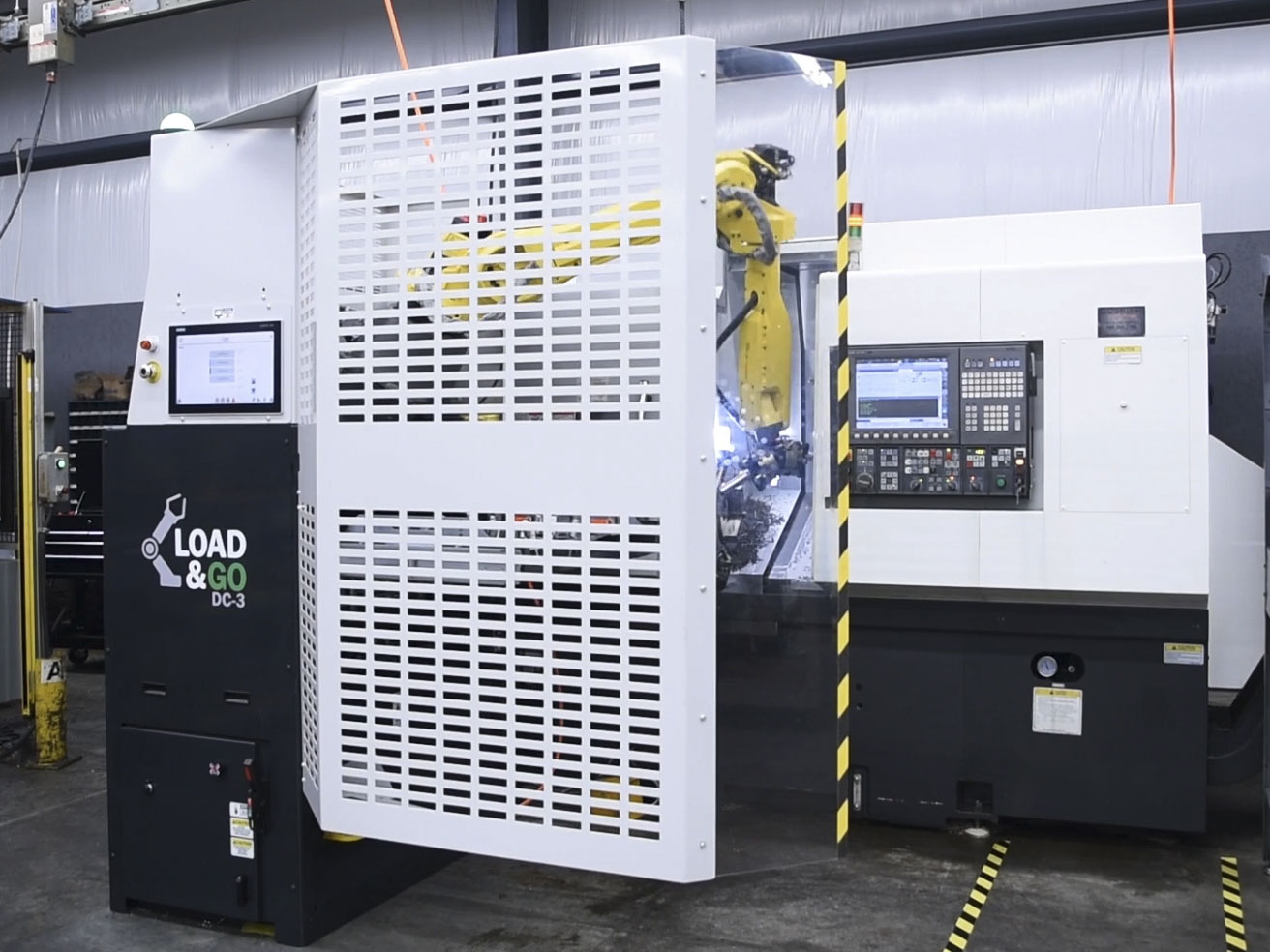

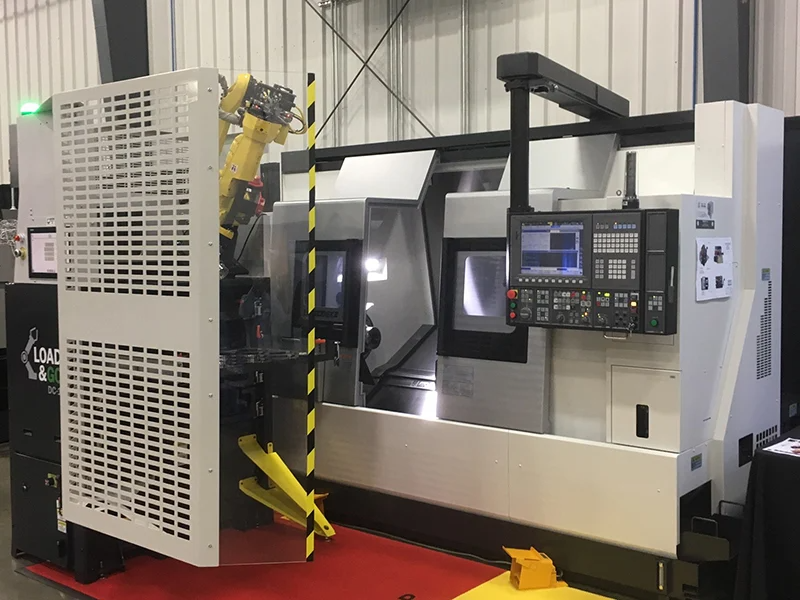

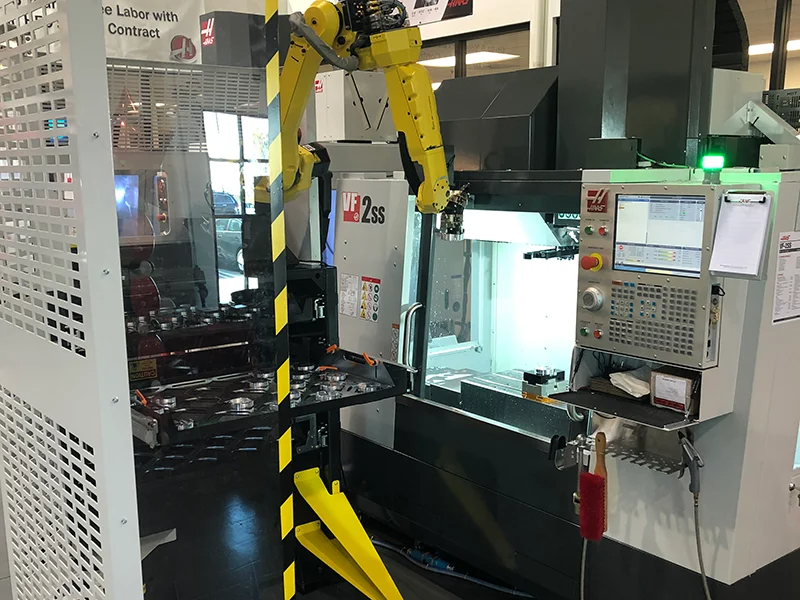

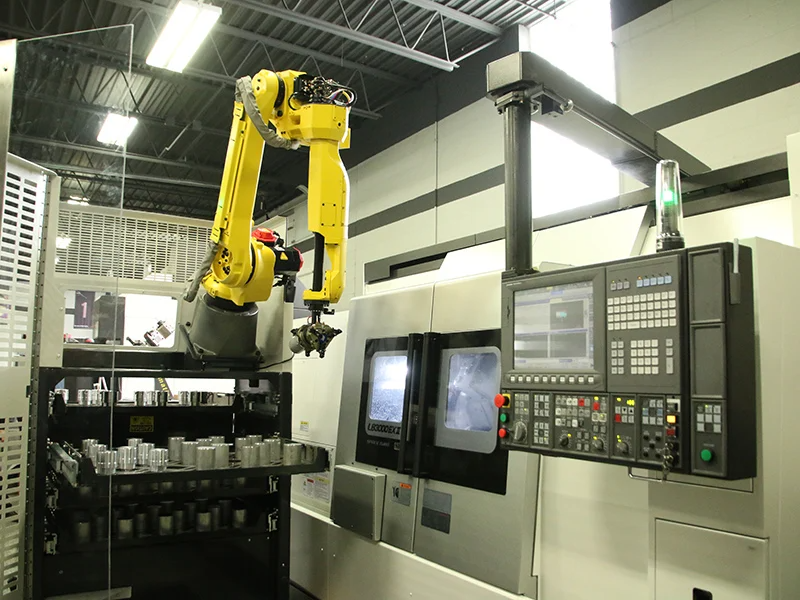

Load & Go DC-1 on a Haas Load & Go DC-1 on an Okuma Load & Go DC-1 on a Haas Load & Go DC-1 on an Okuma
